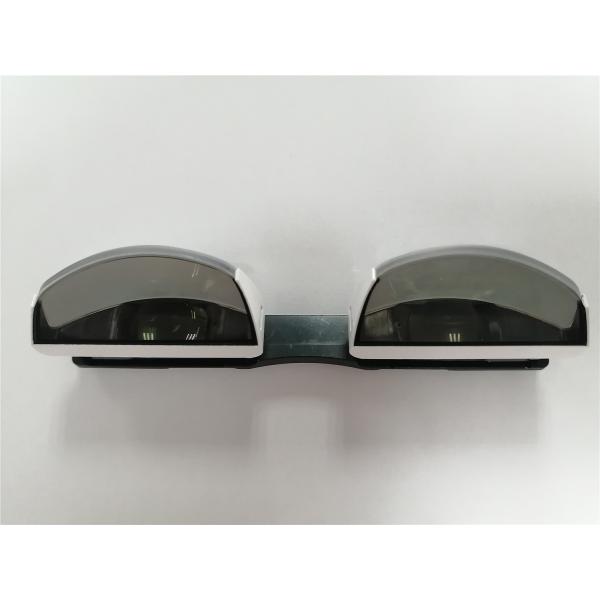

HD 1080P 0.49" Micro Head Mounted Display OLED 1800nits For AR Glasses

  • 1
  • 2

Brand Name : ENMESI

Model Number : R11

Certification : CE,FCC,ROHS

Place of Origin : Shenzhen,China

MOQ : 200pcs

Price : Negotiable

Payment Terms : T/T, Western Union etc

Supply Ability : 5000pcs/month

Delivery Time : 7 work days

Packaging Details : gift box

Model : R11

Resolution : 1920*1080

Quantity : Binocular

FOV : 41°

Interface : MIPI

Application : Education, medical, etc.

Contact Now

HD 1080P OLED 1800nits Brightness 0.49" Micro Display Module For AR Glasses

Product Description

This display is a 0.49 inch diagonal, 1920(RGB) × 1080 dots active matrix color OLED module based on single-crystal
silicon transistors.
This module integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.

Product Details

Resolution Full-HD 1920*1080
Display Material OLED
Screen Size 0.49"
Quantity 2 screens, binocular
FOV 41°
Brightness 1800 nits
Contrast Ratio
50000:1
Frame Rate
60Hz~90Hz
Interface
MIPI

Features

  • High resolution
  • Large FOV
  • High brightness
  • Plug and play
  • Light and small
  • Ultra high contrast
  • Wide color gamnt
  • Fast response speed

Interface

I2C Interface
The I2C-bus is for bi-directional, two-line communication between different ICs or modules.The two lines are the Serial Data Line (I2C_SDA) and Serial Clock Line (I2C_SCL). Both lines mustbe connected to a positive power supply via pull-up resistors. Data transfer can be initiated only whenthe bus is not busy. The acknowledge takes place after every byte. The acknowledge bit allowsthe receiver to signal the transmitter that the byte was successfully received and another byte maybe sent. The master generates all clock pulses, including the ninth acknowledge clockpulse.
